Ditec DOD14

Ditec DOD14

Click Here to download a Ditec DOD 12-14-15 Brochure

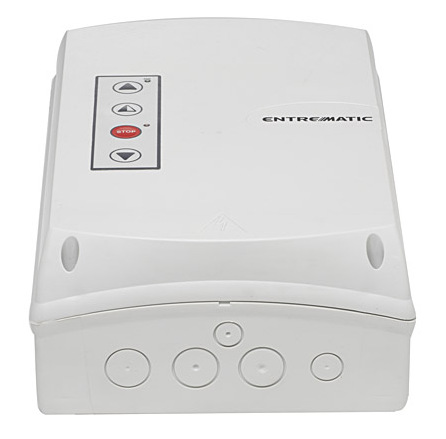

DOD14 PRE-WIRED LOGIC Single phase, 230v, 50Hz

-Pre-wired Multi Mode Logic Controller

-24v Power supply for accessories

-5m of cable between controller & motor

-Low temp mode for operation down to -20°C

-Auto reversing safety feature

-IP54 protection rating

-Heavy duty direct drive gearbox

-Jack shaft mounting ti 1" (25.4mm) keyed shaft

-Emergency manual override function

-22rpm output, 60 Nm torque

-Approx door speed: 9.40m per min with 183 drums, 7.26 with 181 drums
